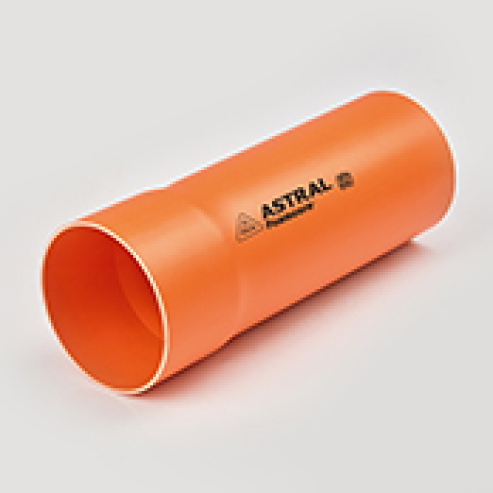

Orange Foamcore Pipe Astral Selfit

Strong and Light Weight Drainage System

Astral Foamcore pipes are basically multilayer pipes having outer and inner layers of conventional PVC and middle layer of foamed PVC. Outer and inner layers are designed to take the load while the middle layer of foamed PVC gives rigidity while maintaining the shape of the pipe under load. It reduces total weight of pipe and makes it light when compared to solid wall PVC pipes. The pipe is typical of solid wall PVC under load and the type of distortion is normally expected.

The Astral Foamcore pipe can distribute the load more evenly and does not show the same amount of distortion, as it has unique “I-Beam” structure. Due to its ability of absorbing the load, Astral Foamcore pipes are most suitable for underground drainage systems, where soil exerts a lot of pressure on pipe surfaces. In solid wall pipes, this soil pressure will rupture the pipe after some time where Astral Foamcore pipes give better life as foamed PVC layer will absorb pressure and make pipes “stress-free” in working conditions.

Standards & Specifications

• ISI 16098:1

Available Sizes

Astral Foamcore pipes are available in 11.0 cm to 31.5 cm with different stiffness classes mainly categorized as SN2, SN4 & SN8. SN2 pipes are recommended for above ground applications while SN4 & SN8 pipes are recommended for below ground applications depending on the level at which these pipes have to be installed.

• 11.0 cm with stiffness class SN4 & SN8
• 16.0 cm, 20.0 cm, 25.0 cm & 31.5 cm with stiffness class SN2, SN4 & SN8
